Industrial XRay Parts Counter High Accuracy for SMD Reel

Brand Name: WELLMAN
Model Number: XC-01
MOQ: 1
Price: 20000-30000 USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE, FDA
X-ray Tube Voltage:
80KV
Type:
Closed,microfocus
Max Tube Voltage:
80kv
Effective Area:
430mm*430mm
Pixel Size:
139μm
Resolution:
3072*3072
Packaging Details:
Wooden case
Highlight:

industrial X-ray parts counter

,

high accuracy SMD reel counter

,

X-ray counter for SMD components

Product Description
Industrial X-Ray Parts Counter High Accuracy for SMD Reel

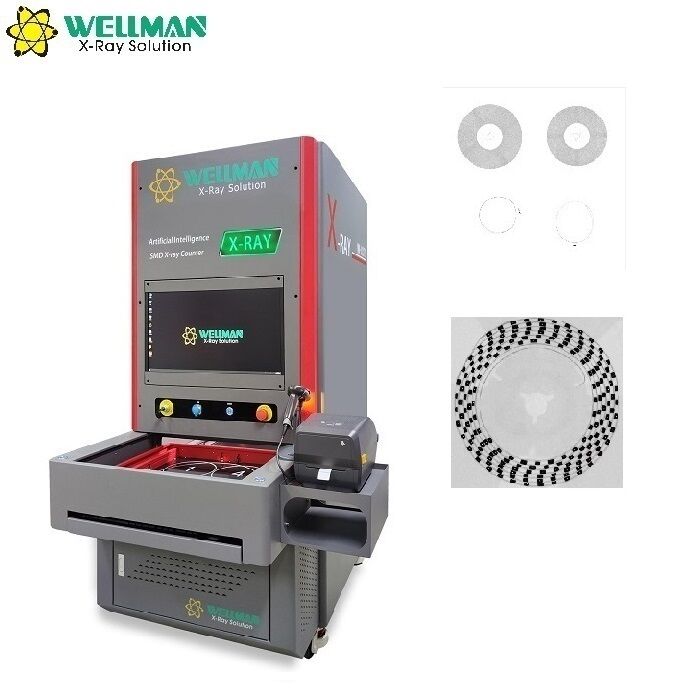

SMT Factory X-Ray Component Counter XC-01
Product Overview
The Wellman Microfocus X-Ray Component Counter XC-01 comes equipped with a 17" Super Definition Flat Panel Detector (FPD), delivers 99.98% counting accuracy, and is engineered for seamless integration with MES, ERP, and WMS systems.
Key Advantages
  • 80kV closed X-ray tube: Long lifespan and maintenance-free operation
  • High compatibility: Supports reels and trays up to 17 inches (430mm) with moisture barrier bags
  • Ultra fast counting speed: Counts four 7-inch reels or one 15-inch (380mm) reel within 10 seconds
  • Intelligent operation: No need to switch between single and multi-reel modes
  • Advanced Tracking: Work order management with counting record query and statistics
  • AI Deep Learning Algorithm: Free permanent updates and MES/ERP/WMS system compatibility
  • Automated Operation: Simultaneous code scanning, counting and label printing supported
  • 17" Super Definition Digital FPD: High-resolution imaging for accurate component counting
Technical Specifications
X-ray Source
TypeIntegrated, microfocus
Max tube voltage80kV
Max tube current700μA
Focal spot size30μm
Flat Panel Detector
TypeSuper definition digital FPD
Effective area430mm * 430mm
Pixel size139μm
Resolution3072 * 3072
Reel/Tray Counting
Max size17" (430mm)
Max thickness88mm
Min parts size01005
Speed7-10s
Accuracy01005 ≥ 99.98%, 0201 & above ≥ 99.99%
Equipment
Dimensions1000mm (L) * 1300mm (W) * 1820mm (H)
Weight580kg
Power supplyAC110-220V 50/60HZ
Max power800W
Industrial PCI7 CPU, 16G RAM, 256G SSD+4T HDD
Displayer24" HDMI LCD
Safety Features
Radiation leakageNo leakage, international standard: ≤1μSv/h
Back door safety interlockAutomatic X-ray power off when door opens
Anti-pinch protectionSafety light curtain covers entire drawer
Emergency stopFront-mounted emergency power off button
Performance Metrics
Reel Size Parts Size Quantity Accuracy Speed
7" (180mm) 01005 40000 99.98% 9-10s
7" (180mm) 0201 20000 99.99% 8-9s
7" (180mm) 0402 10000 99.99% 7-8s
7" (180mm) 0603 5000 99.99% 7-8s
10" (254mm) 1206 5000 99.99% 7-8s
15" (380mm) 1206 10000 99.99% 7-8s
AI Deep Learning Technology
Our counting software utilizes powerful artificial intelligence that automatically identifies components without manual algorithm binding. The system learns from counted component data including:
  • Image deformation tracking
  • Slope analysis between components
  • Component corner angle measurement
  • Aspect ratio analysis
Counting accuracy keeps advancing as the system processes more components, with the technology easily adapting to similar components or larger trays.
Industrial XRay Parts Counter High Accuracy for SMD Reel 0
Working Principle
Industrial XRay Parts Counter High Accuracy for SMD Reel 1
Cloud Database Integration
Every X-ray counter connects to our cloud database for:
  • Automatic data and image uploads
  • Continuous algorithm optimization by engineers
  • Regular database updates for all customers
Over time, the system's counting accuracy draws closer to 100% while its component type coverage continues to expand; when new components are encountered, the system utilizes existing database knowledge for immediate high-efficiency processing.
Industrial XRay Parts Counter High Accuracy for SMD Reel 2
Sample Images
Industrial XRay Parts Counter High Accuracy for SMD Reel 3 Industrial XRay Parts Counter High Accuracy for SMD Reel 4 Industrial XRay Parts Counter High Accuracy for SMD Reel 5
