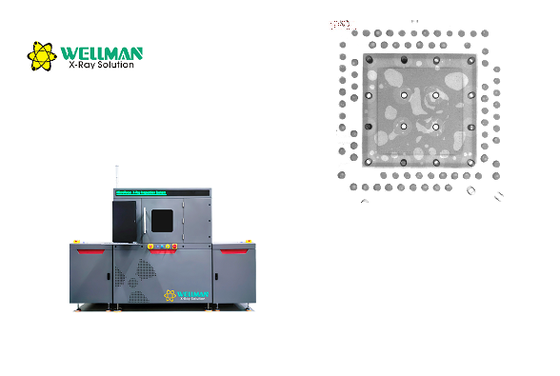

Six Axis Servo Driven X ray inspection machine for SMT Accurate Electronic Assembly Check

• Closed type X-ray tube with over 10,000 hours lifetime, maintenance-free
• New generation 5" HD digital flat panel detector (FPD)
• Automatic navigation window - table moves to where you click
• Belt transmission with width adjustment by lead screw & guide rail, max width 620mm
• 6-axis motion system equipped with servo motor, X-ray tube and FPD move in sync
• Edit inspection procedures for automated inspection in large quantities
• Easy to operate with quick defect finding - only 2 hours training required

• Automatic calculation: Click on two points to determine a rectangle. The software automatically finds and measures the edge of the solder ball in the rectangle, the pad and the internal voids, and can get the data of the voids rate, the area of the solder ball, the circumference, the biggest void's rate, the length and the width, and indicates NG or OK by red and green.
• Parameters adjustment: Users can adjust the grayscale threshold, pixel, contrast, size filtering and other parameters to get accurate results of automatic calculation.
• Add voids manually: Users can draw a polygon or a free figure and calculate it as a void into the void rate.
• Save parameters: Users can save parameters such as grayscale threshold, pixel, contrast, size filtering and other parameters, and can directly call the parameters when detecting the same product, to improve the detection efficiency.

• Distance: Click the A and B points to set as the baseline, then click the C point to measure the vertical distance from the C point to the baseline.
• Distance rate: It is mostly used to measure the soldering rate of the through-hole. Set one more point "D" than the distance. Divide the vertical distance from the D point to baseline by the vertical distance of the C point, to obtain the percentage ratio of the vertical distance of D to C.
• Angle: Click the A and B points to set as the baseline, then click the C point to measure the angle between the BA and BC rays.
• Radius: It is mostly used to measure round components such as solder balls. Click three points to determine a circle and measure the circumference, area and radius.
• Perimeter: It is mostly used to measure square components, click two points to determine a square, measure the length, width and area.

• Manual setting: Users can set any positions on the table as inspection points, the software will automatically inspect and save the picture.
• Array: For the regular inspection points, users only need to set two of the inspection points and the number of rows and columns, the software will automatically inspect each point and save pictures.
• Automatic identification: For inspection points with obvious features, the software automatically identifies the positions, takes measurements, and saves the image.

BGA solder inspection, PCB through-hole detection, IC and LED assembly check, capacitor and inductor testing, automotive electronics, cable and fiberglass analysis.

BGA Solder Bridge

BGA Solder Voids

PCB Through-Hole

IC Voids and Gold Wire

LED Solder Voids

LED Gold Wire Crack

Capacitor

Inductor

Sensor

Thyristor Surge Suppressors

Fiberglass

Cable

Diode

Steel Pipe Welding Gap

Automobile Electronics
