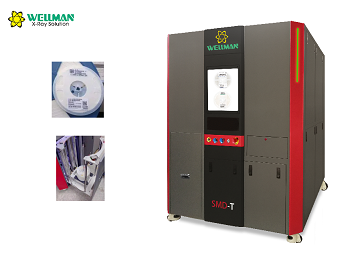

Intelligent SMD material storage system SMD tower with 1200 reels storage capacity and support MES/ERP management system

Brand Name:	WELLMAN
Model Number:	SMD-T
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE, FDA，ISO9001

Storage Capacity:

750pcs (standard), 1120pcs (heightened)

Reel Size:

7" To 13", 15" Customizable

Product Description

Intelligent SMD Material Storage System SMD Tower

Product Overview

Advanced SMD tower storage system with 1200 reels capacity and comprehensive MES/ERP management system integration.

Key Advantages

Fully automatic storage and retrieval, supporting 7" to 15" reels
Ultra-high space utilization with standard capacity of approximately 750 reels
Expandable to 2.7 meters height with capacity up to 1120 reels
Customizable configurations with comprehensive software technical support
Batch automatic scanning and loading, compatible with barcode/QR code systems
Efficient processing: one reel in approximately 12 seconds

Workflow Process

Hardware Specifications

Feature	Specification
Material Type	SMD Reel
Batch Loading	Yes
Standard Capacity	750pcs (7", 10mm reel)
Expanded Capacity	1120pcs (7", 10mm reel)
Supported Reel Sizes	7" to 13", 15" customizable
Single Reel Cycle Time	Approx. 15s
Cycle Time (Expanded)	Approx. 16s
Minimum Height	5mm
Maximum Height	25mm (customizable)
Maximum Weight	3KG (customizable)
Multi-tower Connection	Supported
WMS Management	Yes
Temperature/Humidity Warning	Supported
Operating System	Win10/11
Chip Mounter Communication	Optional
Management System Integration	MES, ERP, WMS, etc.

Equipment Dimensions

Configuration	Dimensions	Weight
Standard	1450mm (L) × 1900mm (W) × 2050mm (H)	1500KG
15" Reel Design	1650mm (L) × 2120mm (W) × 2050mm (H)	-
Height Expanded	2750mm Height	2000KG

Operating Conditions

Power Supply

220VAC, 10A

Power Consumption

3000W

Industrial PC

I7 CPU, 8G RAM, 240G SSD+1T HDD

Display

17" Touch Screen

Working Temperature

0 - 40°C

Working Humidity

10 - 85%

Noise Level

50dB

Air Pressure

0.5-0.7mpa

N2 Interface

Supported

Software Functions

Module	Function	Description
Warehouse Management	Material Management	Transform unique codes for incoming material, add to total material table
Warehouse Management	Tower Setup	Configure new SMD towers and their locations
Warehouse Management	Supplier Info	Supplier information management: add, delete, or search
Warehouse Management	Customer Info	Customer information management: add, delete, or search
Warehouse Management	Inventory Management	Intelligent management of overall inventory
Warehouse Management	Inventory Freeze	Freeze specific locations as needed
Warehouse Management	Inventory	Take stock and update stored reel data
Warehouse Management	Verification	Scan codes and load materials
SMD Tower Database	Location Parameters	Record coordinate and size information for each location
SMD Tower Database	Current Tower Status	Record status of each location in current SMD tower
SMD Tower Database	In & Out Records	Track all material bin and tray movements for traceability
SMD Tower Database	Operation Records	Log initialization, power cycles, alarms, and other operations
