Offline Xray Reel Counter with 99.98% accuracy can record the data for each counting process

Brand Name: WELLMAN
Model Number: XC01
MOQ: 1
Payment Terms: T/T
Supply Ability: Worldwide supply
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ISO9001,FDA
Packaging Details:
Wooden case
Supply Ability:
Worldwide supply
Highlight:

Offline Xray Reel Counter

,

Xray Reel Counter with warranty

,

Xray Counter with data recording

Product Description
Offline X-ray Reel Counter with 99.98% Accuracy
Advanced XC01 reel counter records data for each counting process with exceptional precision and reliability.
Key Advantages
  • Closed type X-ray tube for extended service life and maintenance-free operation
  • Seamless integration with MES, ERP, WMS, and other management systems

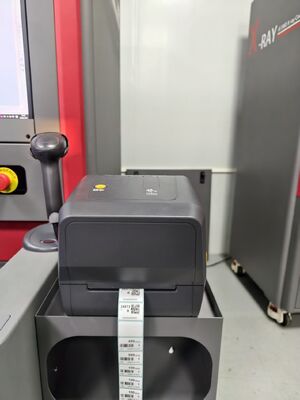

  • Simultaneous automatic code scanning and label printing capabilities

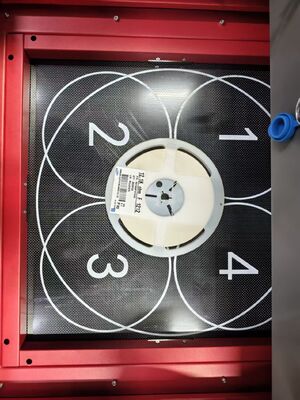

  • High-speed counting: four 7" reels or one 15" reel in 7-10 seconds
  • Automatic mode switching eliminates manual single/multi reel adjustments
Working Principle
Advanced X-ray imaging technology enables precise electronic component counting and analysis.
XC-01 Intelligent Component Counter working principle diagram showing X-ray imaging process for electronic component counting
Equipment Specifications
X-ray Source 80kV (optional), 700μA, 30μm focal spot
Detector 430×430mm, 3072×3072, 139μm pixel
Counting Capability Minimum: 01005 | Speed: 7-10s | Accuracy: ≥99.98%
Mechanical Dimensions 1000×1300×1820mm | 520kg | 800W maximum power
Safety Features Radiation ≤1μSv/h | Safety interlock | Anti-pinch protection | Emergency stop
Speed and Accuracy Performance
Reel Size Parts Size Quantity Accuracy Speed
7" (180mm) 01005 40000 99.98% 9-10s
7" (180mm) 0201 20000 99.99% 8-9s
7" (180mm) 0402 10000 99.99% 7-8s
7" (180mm) 0603 5000 99.99% 7-8s
10" (254mm) 1206 5000 99.99% 7-8s
15" (380mm) 1206 10000 99.99% 7-8s
AI Deep Learning Algorithm
System accuracy improves progressively with increased counting operations. The advanced algorithm efficiently handles similar components and larger trays, delivering enhanced performance over time.
AI deep learning algorithm visualization showing component recognition and analysis process
Cloud Database Integration
Continuous improvement process ensures counting accuracy approaches 100% over time with expanding component type coverage. When encountering new components, the system directly accesses stored cloud data for enhanced efficiency, accuracy, and coverage.
Cloud database integration diagram showing data flow between counter and cloud system
Sample Images
XC-01 component counter sample image showing electronic component detection XC-01 component counter sample image showing component arrangement analysis XC-01 component counter sample image showing high-precision counting results XC-01 component counter sample image showing various component sizes XC-01 component counter sample image showing reel counting process XC-01 component counter sample image showing final counting accuracy
Product Certification
XC01 X-ray counter certification documentation
