Hamamatsu X Ray Source
>
Microfocus XRay Source 2µm 110kV For Electronics PCB NDT Testing

Microfocus XRay Source 2µm 110kV For Electronics PCB NDT Testing

Brand Name: HAMAMATSU
Model Number: L12531
MOQ: 1
Payment Terms: T/T
Detail Information
Place of Origin:
JAPAN
Certification:
CE, FDA
Target Material:
Tungsten
Brand Name:
Hamamatsu
Place Of Origin::
JAPAN
Packaging Details:
Carton
Communication Method:
Interface: RS-232C(9-pin D-sub Connector)
Highlight:

Microfocus X-ray source for PCB testing

,

Hamamatsu X-ray source 110kV

,

2µm X-ray source for NDT

Product Description
HAMAMATSU L12531 Microfocus X-Ray Source
Advanced microfocus X-ray source delivering 2μm high resolution with 120° wide beam angle and maintenance-free sealed design. Ideal for precision electronics PCB inspection and non-destructive testing applications.
Key Technical Features
  • Wide X-ray beam angle: 120° coverage
  • Maintenance-free sealed microfocus X-ray source design
  • High resolution: 2 μm at 2 W with transmission target
  • High magnification with 1 mm FOD (Focus to Object Distance)
Primary Applications
  • X-ray CT scanning and tomography
  • Non-destructive inspection and testing
Compatible Inspection Objects
  • Electronic components and assemblies
  • Plastic components and materials
  • Metal components and structures
  • Printed circuit boards (PCB)
Microfocus XRay Source 2µm 110kV For Electronics PCB NDT Testing 0

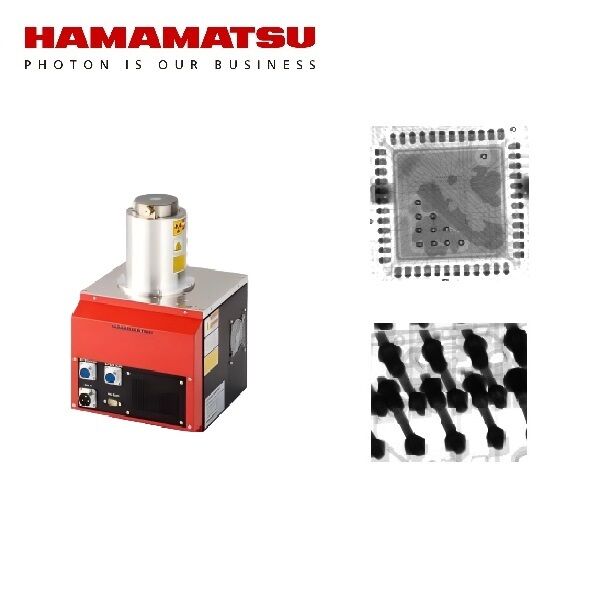

Microfocus X-Ray Source Close-up
