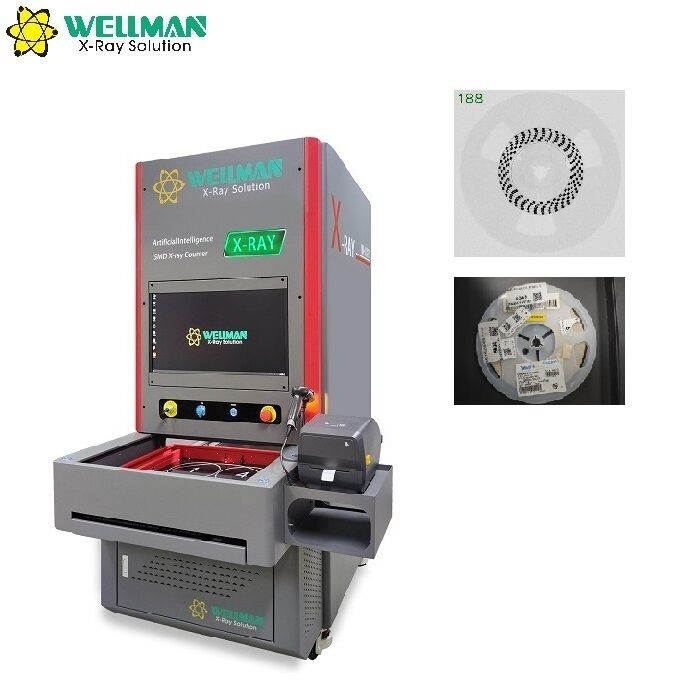

Microfocus XRay Parts Counter Counting High Accuracy for SMD Reel

Brand Name: WELLMAN
Model Number: XC-01
MOQ: 1
Price: 20000-30000 USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE, FDA
X-ray Tube Voltage:
80KV
Type:
Closed,microfocus
Max Tube Voltage:
80kv
Effective Area:
430mm*430mm
Pixel Size:
139μm
Resolution:
3072*3072
Packaging Details:
Wooden case
Highlight:

Microfocus XRay parts counter

,

SMD reel counting machine

,

high accuracy XRay counter

Product Description
Microfocus X-Ray Parts Counter for SMD Reel
XC-01 X-Ray Component Counter delivers high-accuracy counting for SMT warehouse operations with 99.98% precision and seamless system integration.
Product Overview
The Wellman Microfocus X-Ray Component Counter XC-01 features a 17" Super Definition Flat Panel Detector (FPD), achieves 99.98% counting accuracy, and is engineered for seamless integration with MES, ERP, and WMS systems.
Key Advantages
  • 80kV closed X-ray tube for extended lifespan and maintenance-free performance
  • Large-capacity compatibility supporting reels/trays up to 17" (430mm), including moisture barrier bags
  • High-speed processing: four 7" reels or one 15" (380mm) reel in under 10 seconds
  • Intelligent mode operation eliminates single/multi-reel mode switching
  • Advanced tracking with work order number support and counting record query capabilities
  • AI deep learning algorithm with free continuous updates and MES/ERP/WMS compatibility
  • Automated operation with simultaneous code scanning, counting, and label printing
  • 17-inch Ultra HD Digital FPD for high-resolution imaging and accurate component counting
Technical Specifications
X-ray Source
TypeIntegrated, microfocus
Max tube voltage80kV
Max tube current700μA
Focal spot size30μm
Flat Panel Detector
TypeSuper definition digital FPD
Effective area430mm * 430mm
Pixel size139μm
Resolution3072 * 3072
Reel/Tray Counting
Max size17" (430mm)
Max thickness88mm
Min parts size01005
Speed7-10s
Accuracy01005 ≥ 99.98%, 0201 & above ≥ 99.99%
Equipment
Dimensions1000mm (L) * 1300mm (W) * 1820mm (H)
Weight580kg
Power supplyAC110-220V 50/60HZ
Max power800W
Industrial PCI7 CPU, 16G RAM, 256G SSD+4T HDD
Displayer24" HDMI LCD
Safety Features
Radiation leakageNo leakage, international standard: ≤1μSv/h
Back door safety interlockAutomatic X-ray power off when door opens
Anti-pinch protectionSafety light curtain covers entire drawer
Emergency stopFront-mounted emergency power off button
Performance Metrics
Reel Size Parts Size Quantity Accuracy Speed
7" (180mm) 01005 40000 99.98% 9-10s
7" (180mm) 0201 20000 99.99% 8-9s
7" (180mm) 0402 10000 99.99% 7-8s
7" (180mm) 0603 5000 99.99% 7-8s
10" (254mm) 1206 5000 99.99% 7-8s
15" (380mm) 1206 10000 99.99% 7-8s
AI Deep Learning Technology
Our counting software utilizes powerful artificial intelligence that automatically identifies components without manual algorithm binding. The system learns from counted component data including:
  • Component corner angle measurement
  • Aspect ratio analysis
  • Image deformation tracking
  • Slope analysis between components
Counting accuracy continuously improves as the system processes more components, with the technology easily adapting to similar components or larger trays.
