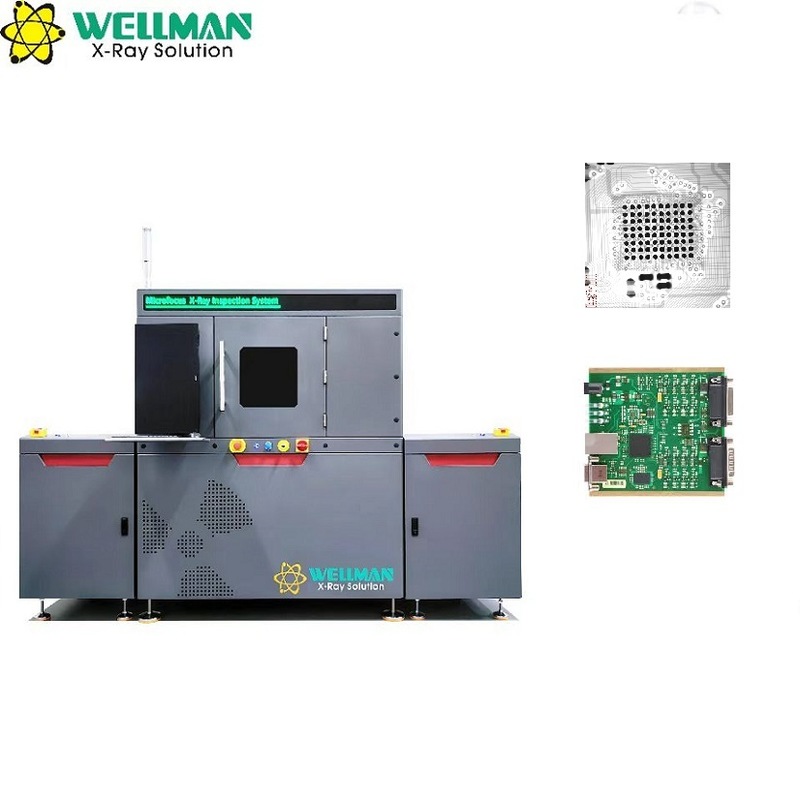

SMT PCB Microfocus X Ray Inspection System With 80kV Max Tube

High-performance industrial X-ray inspection system designed for precision SMT PCB inspection with advanced features and reliable operation.

• Closed type X-ray tube with over 10,000 hours lifetime (maintenance-free)
• Belt transmission with width adjustment (max width 620mm)
• 6-axis motion system with Panasonic servo motors (X-ray tube and FPD move synchronously)
• Customizable inspection procedures for automated high-volume inspection
• New generation 5" HD digital flat panel detector (FPD)
• Automatic navigation window - table moves to clicked position
• Intuitive operation with minimal training required (2 hours)

• Radiation leakage: No leakage (≤1μSv/h, international standard)
• Transparent lead glass observation window for safe internal viewing
• Window and back door safety interlock system
• Electromagnetic safety switch locks during X-ray activation
• Emergency stop button is placed near the operation position
• X-ray tube gets automatic protection when exiting the software

• Full keyboard and mouse control
• Mouse click enables X-ray tube control with real-time voltage/current shown
• Interlock pre-heat and X-ray status are displayed on the status bar
• Brightness contrast and gain of the image can be adjusted
• Product parameter saving and recall for efficient inspection
• Navigation window for precise table positioning
• Real-time motion axis coordinate display
• Inspection result display with measurement data
• Adjustable axis movement speeds (slow, normal, fast)

• Automatic calculation of voids rate, solder ball area, circumference, etc.
• Adjustable grayscale threshold, pixel, contrast, and size filtering parameters
• Manual void addition via polygon or freehand drawing
• Parameter saving for consistent product inspection

• Distance measurement between points
• Distance rate calculation for through-hole soldering
• Angle measurement between points
• Radius measurement for circular components
• Perimeter measurement for square components

• Manual inspection point setting
• Array inspection for regular patterns
• Automatic feature recognition for distinctive inspection points

Working principle diagram of IL-3000 X-ray inspection machine

Example application of IL-3000 X-ray inspection

Additional example of IL-3000 X-ray inspection results
