X Ray Counter
>

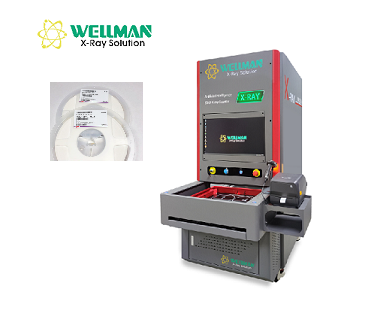

X-ray Reel Counter with 80kV Closed Tube and Ultrafast Counting

X-ray Reel Counter with 80kV Closed Tube and Ultrafast Counting

Brand Name: Wellman
Model Number: XC-01
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
CE, FDA, ISO 9001
Warranty:
12 Months
Application:
SMD Components Counting Machine
Type:
Automatic
Reel Quantity Per Time:
Max 4 Pcs
Packaging Details:
wooden case
Highlight:

X-ray reel counter with 80kV tube

,

Ultrafast X-ray counting reel

,

Closed tube X-ray counter

Product Description
X-ray Reel Counter with 80kV Closed Tube and Ultrafast Counting
Working Principle
X-ray Reel Counter with 80kV Closed Tube and Ultrafast Counting 0
Key Advantages
  • 17" Super HD Flat Panel Detector
  • Ultrafast Counting (within 10 seconds)
  • AI Deep Learning Algorithm with Permanent Updates
  • Support for MES/ERP/WMS Systems
  • Automatic Code Scanning & Counting with Label Printing
  • 80kV Closed X-Ray Tube with Extended Lifespan
Technical Specifications
X-ray Source
Type: Closed, microfocus
Focal Spot Size: 30μm
Max Tube Voltage: 80kV
Max Tube Current: 700μA
Flat Panel Detector
Type: Super definition digital FPD
Pixel Size: 139μm
Effective Area: 430mm × 430mm
Resolution: 3072 × 3072
Reel Counting
Max Thickness: 88mm
Min Parts Size: 01005
Max Size: 17" (430mm)
Speed: 7-10 seconds
Accuracy
01005: ≥ 99.98%
0201 & above: ≥ 99.99%
Equipment
Dimensions: 1000mm (L) × 1300mm (W) × 1820mm (H)
Weight: 580kg
Power Supply: AC110-220V 50/60HZ
Max Power: 800W
Industrial PC
I7 CPU, 16G RAM, 256G SSD+4T HDD
Display: 24" HDMI LCD
Additional Functions
  • Automatic Barcode and QR Code Scanning
  • Automatic Label Printing
  • Counting Record Inquiry by Time Range and Work Order Number
  • Management System Connection (MES, ERP, WMS, etc.)
  • Automatic Single/Multi Reel Detection Mode Switching
  • Work Order Number Recording Support
Safety Features
  • No Radiation Leakage
  • Back Door Safety Interlock with Automatic X-ray Power Off
  • Anti-pinch Safety Light Curtain with Immediate Stop Function
  • Front-mounted Emergency Stop Button
Cloud Database Integration

All Wellman X-ray counters connect to cloud database, automatically uploading data and images while downloading the latest updates. Our engineering team continuously optimizes algorithms using collected data and regularly updates the database for all customers.

X-ray Reel Counter with 80kV Closed Tube and Ultrafast Counting 1
Speed and Accuracy Performance
Reel Size Parts Size Quantity Accuracy Speed
7" (180mm) 01005 40000 99.98% 9-10s
7" (180mm) 0201 20000 99.99% 8-9s
7" (180mm) 0402 10000 99.99% 7-8s
7" (180mm) 0603 5000 99.99% 7-8s
10" (254mm) 1206 5000 99.99% 7-8s
15" (380mm) 1206 10000 99.99% 7-8s
AI Deep Learning Algorithm

Our counting software utilizes advanced AI deep learning algorithms for automatic component identification (no manual binding required) and continuously learns from component data including:

  • Aspect ratio analysis
  • Component corner angle detection
  • Component image deformation analysis
  • Slope analysis between components from inside to outside
X-ray Reel Counter with 80kV Closed Tube and Ultrafast Counting 2
Sample Images
X-ray Reel Counter with 80kV Closed Tube and Ultrafast Counting 3 X-ray Reel Counter with 80kV Closed Tube and Ultrafast Counting 4 X-ray Reel Counter with 80kV Closed Tube and Ultrafast Counting 5 X-ray Reel Counter with 80kV Closed Tube and Ultrafast Counting 6 X-ray Reel Counter with 80kV Closed Tube and Ultrafast Counting 7 X-ray Reel Counter with 80kV Closed Tube and Ultrafast Counting 8
