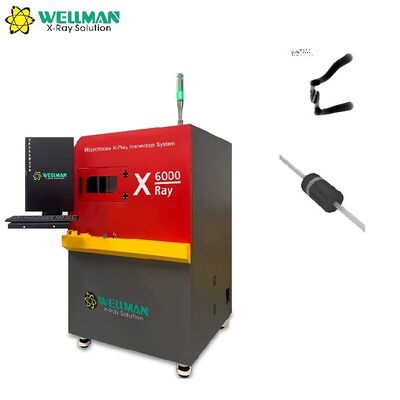

Microfocus X Ray Inspection System 5μm Focal Spot High Precision BGA PCB Testing

Brand Name:	WELLMAN
Model Number:	X6000
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE, FDA

Warranty:

12 Months

Name:

Wellman X-ray Inspection System X6000

Type:

Closed, Microfocus

Max Tube Voltage:

Max Tube Current:

200μA

Focal Spot Size:

Effective Area:

130mm*130mm

Packaging Details:

Wooden case

Highlight:

Microfocus X-ray inspection system

High precision BGA PCB testing

5μm focal spot X-ray machine

Product Description

Microfocus X-Ray Inspection System X6800

Industrial SMT PCB defect detection system featuring automated batch inspection, providing high-precision imaging for BGA solder voids and PCB through-holes with 5μm focal spot technology.

Key Advantages

Next-generation 5-inch HD digital flat panel detector (FPD)
Optional 360° rotating jig for multi-angle product inspection
User-friendly operation with only 2 hours of training required
Auto-navigation window: worktable moves directly to clicked position
420×420mm work table with 15KG load capacity
Programmable inspection processes enable automated batch inspection
3-axis linkage system allowing adjustment of movement speed
Enclosed X-ray tube with >10,000 hours operational life (maintenance-free)

Technical Specifications

X-ray Source

Type	Closed, microfocus
Max tube voltage	90kV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat

Flat Panel Detector

Effective area	130mm×130mm
Pixel size	85μm
Resolution	1536×1536
Frame rate	20fps

Work Table

Size	420mm×420mm
Detectable area	400mm×400mm
Max load	15kg

Equipment Parameters

Magnification	Geometry 150X \| System 1500X
Inspection speed	Max 3.0s/point
Dimensions	1100mm (L) × 1000mm (W) × 1600mm (H)
Weight	1000kg
Power supply	AC110-220V 50/60HZ
Max power	1300W
Industrial PC	Intel I5 CPU, 8G RAM, 240GB SSD
Displayer	24" HDMI LCD

Safety Features

Radiation leakage	No leakage (≤1μSv/h, international standard)
Lead glass observation window	Transparent lead glass shields radiation while allowing internal observation
Window/door safety interlock	X-ray automatically powers off when window/door is opened
Electromagnetic safety switch	Locks observation window when X-ray is active
Emergency stop	Instant power-off button near operation position
Tube protection	Software prevents X-ray tube from being left on

Software Capabilities

Basic Operation

Full keyboard and mouse control covers all functions, including X-ray tube activation and parameter adjustment.

Measurement Tools

Comprehensive measurement functions including distance, angle, radius, perimeter, and distance rate calculations for through-hole soldering analysis.

Automated Inspection

Three modes available: manual point setting, array pattern for regular points, and automatic feature recognition to enable efficient batch processing.

Image Processing

Adjustable brightness, contrast, and gain to achieve optimal image quality. Save and retrieve inspection parameters for repeated inspections.

Voids Rate Measurement

Automatically computes solder ball void rate area and perimeter, identifies defects, and supports manual void marking with parameter storage for stable and consistent inspection results.

Application Examples

X6000 inspection application example 1

X6000 inspection application example 2

Working Principle

X6000 X-ray inspection system working principle
