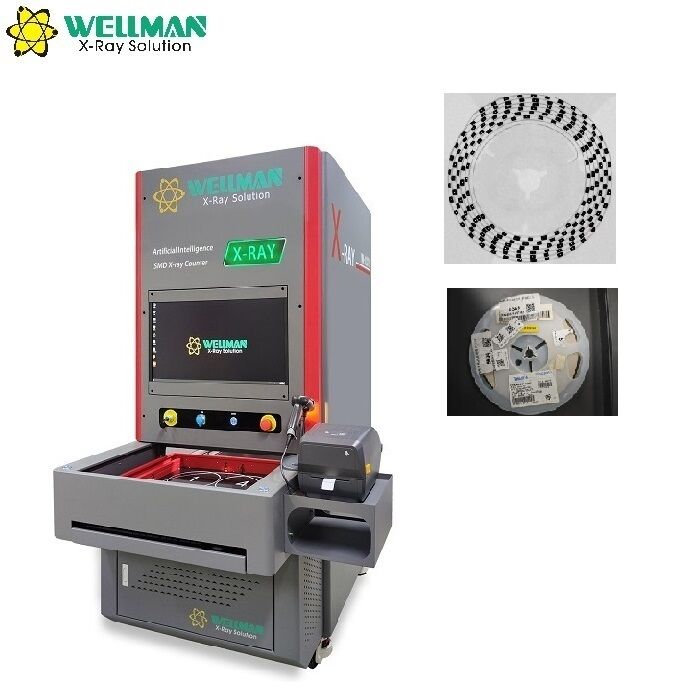

XRay SMD Counter Maintenance Free XRay Tube for SMT Production

Brand Name: WELLMAN
Model Number: XC-01
MOQ: 1
Price: 20000-30000 USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE, FDA
X-ray Tube Voltage:
80KV
Type:
Closed,microfocus
Max Tube Voltage:
80kv
Effective Area:
430mm*430mm
Pixel Size:
139μm
Resolution:
3072*3072
Packaging Details:
Wooden case
Highlight:

XRay SMD Counter tube

,

maintenance free XRay tube

,

SMT production XRay tube

Product Description
Wellman Microfocus X-Ray SMD Counter XC-01
The Wellman Microfocus X-Ray Component Counter XC-01 features a 17" Super Definition Flat Panel Detector, delivers 99.98% counting accuracy, and is engineered for seamless integration with MES, ERP, and WMS systems.
Key Advantages
  • 80kV Sealed X-ray Tube: Extended lifespan and maintenance-free operation
  • Large Capacity Compatibility: Supports reels/trays up to 17" (430mm) including moisture barrier bags
  • Blazing-fast Counting Speed: Processes four 7" reels or one 15" (380mm) reel in under 10 seconds
  • Intelligent Mode Operation: Eliminates single/multi-reel mode switching
  • Advanced Tracking: Work order management with counting record inquiry and statistics
  • AI Deep Learning Algorithm: Free permanent updates and compatible with MES ERP WMS systems
  • Automated Operation: Supports simultaneous code scanning counting and label printing
  • 17-inch Super Definition Digital FPD: High resolution imaging for accurate component counting
Technical Specifications
X-ray Source
TypeIntegrated, microfocus
Max tube voltage80kV
Max tube current700μA
Focal spot size30μm
Flat Panel Detector
TypeSuper definition digital FPD
Effective area430mm * 430mm
Pixel size139μm
Resolution3072 * 3072
Reel/Tray Counting
Max size17" (430mm)
Max thickness88mm
Min parts size01005
Speed7-10s
Accuracy01005 ≥ 99.98%, 0201 & above ≥ 99.99%
Equipment
Dimensions1000mm (L) * 1300mm (W) * 1820mm (H)
Weight580kg
Power supplyAC110-220V 50/60HZ
Max power800W
Industrial PCI7 CPU, 16G RAM, 256G SSD+4T HDD
Displayer24" HDMI LCD
Safety Features
Radiation leakageNo leakage, international standard: ≤1μSv/h
Back door safety interlockAutomatic X-ray power off when door opens
Anti-pinch protectionSafety light curtain covers entire drawer
Emergency stopFront-mounted emergency power off button
Performance Metrics
Reel SizeParts SizeQuantityAccuracySpeed
7" (180mm)010054000099.98%9-10s
7" (180mm)02012000099.99%8-9s
7" (180mm)04021000099.99%7-8s
7" (180mm)0603500099.99%7-8s
10" (254mm)1206500099.99%7-8s
15" (380mm)12061000099.99%7-8s
AI Deep Learning Technology
Our counting software utilizes powerful artificial intelligence that automatically identifies components without manual algorithm binding. The system learns from counted component data including:
  • Component corner angle measurement
  • Image deformation tracking
  • Slope analysis between components
  • Aspect ratio analysis
Counting accuracy keeps advancing as the system processes more components, with the technology easily adapting to similar components or larger trays.
XRay SMD Counter Maintenance Free XRay Tube for SMT Production 0
Cloud Database Integration
Every X-ray counter connects to our cloud database for:
  • Regular database updates for all customers
  • Continuous algorithm optimization by engineers
  • Automatic data and image uploads
Over time, the system's counting accuracy draws closer to 100% while its component type coverage continues to expand; when new components are encountered, the system utilizes existing database knowledge for immediate high-efficiency processing.
XRay SMD Counter Maintenance Free XRay Tube for SMT Production 1
Sample Images
XRay SMD Counter Maintenance Free XRay Tube for SMT Production 2 XRay SMD Counter Maintenance Free XRay Tube for SMT Production 3 XRay SMD Counter Maintenance Free XRay Tube for SMT Production 4
Working Principle
XRay SMD Counter Maintenance Free XRay Tube for SMT Production 5
