High Precision Inline X Ray Inspection for Electronic Components Defect Detection

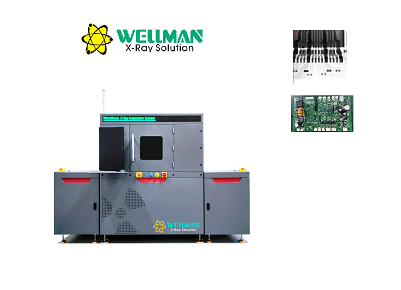

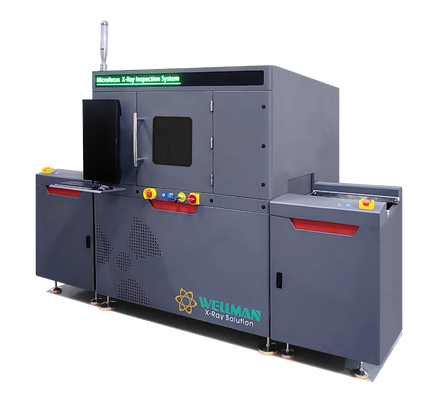

In-line Microfocus X-ray Inspection System

Working Principle

The system uses a microfocus X-ray tube to emit rays through the target product. A high-definition digital flat panel detector captures images. Real-time image processing and display are completed via an industrial PC. Radiation shielding ensures full operational safety.

Core Advantages

Closed X-ray tube with over 10,000 hours service life and maintenance-free design
New generation 5-inch high-definition digital flat panel detector
Automatic navigation window supports one-click positioning
Belt transmission with screw and rail width adjustment up to 620mm
Six-axis motion system with servo motors for synchronized movement
Customizable inspection programs for high-volume automated detection
Simple operation with only 2 hours required for operator training

Hardware Specifications

Item	Details
X-ray Source	Closed microfocus, 90kV, 200μA, 5μm focal spot
Detector	IRay 130mm×130mm, 85μm pixel, 1536×1536 resolution
Movement	Servo motors, six-axis synchronous control
Inspection Area	L520mm, W80-430mm adjustable
Speed	Up to 3.0 seconds per inspection point
Safety	Radiation ≤1μSv/h, interlock, emergency stop, lead glass window
Environment	AC110-220V 50/60Hz, max 3000W

Software Functions

Full mouse and keyboard control for all operations
Real-time X-ray parameter adjustment and status monitoring
Image brightness, contrast and gain fine-tuning
One-click navigation and automatic table positioning
Automatic void rate calculation and defect judgment
Multi-type measurement: distance, angle, radius, perimeter
Batch automatic inspection via point or array mode

Typical Applications

BGA solder inspection, PCB through-hole detection, IC and LED assembly check, capacitor and inductor testing, automotive electronics, cable and fiberglass analysis.
