X Ray Counter

X Ray SMD Parts Counter High Precision Auto Label Printing For PCB Assembly

All Category

X Ray Image Intensifier

Miss. Cordia Liu

sales11@well-man.com

+86 18173552695

Chat Now

X Ray SMD Parts Counter High Precision Auto Label Printing For PCB Assembly

Brand Name:	WELLMAN
Model Number:	XC01
MOQ:	1
Payment Terms:	T/T
Supply Ability:	Worldwide supply

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO9001,FDA

X-ray Tube Voltage:

80KV

Type:

Closed,microfocus

Max Tube Voltage:

80kv

Effective Area:

430mm*430mm

Pixel Size:

139μm

Resolution:

3072*3072

Packaging Details:

Wooden case

Supply Ability:

Worldwide supply

Highlight:

X Ray SMD parts counter

high precision PCB assembly counter

auto label printing X Ray counter

Product Description

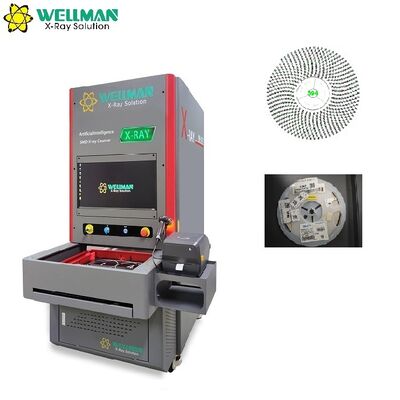

X Ray SMD Parts Counter with High Precision Auto Label Printing

Advanced X-ray counter featuring AI algorithm updates for SMD electronic component reel management. The Wellman X-ray Counter XC-01 offers comprehensive compatibility with MES, ERP, and WMS systems.

Key Advantages

Work order tracking function for counting record retrieval and data statistics
80kV sealed X-ray tube with extended service life and maintenance-free design
17-inch ultra-high resolution digital flat panel detector (FPD)
Ultra-fast counting completes four 7-inch reels or one 15-inch (380mm) reel within 10 seconds
Accommodates maximum 17" (430mm) reel or tray with moisture barrier bag
AI deep-learning algorithm with ongoing free lifetime updates
Seamless connectivity with MES, ERP, WMS and other factory management platforms
Simultaneous barcode scanning and component counting with automatic label printout
Auto-detects working modes eliminating manual switching between single-reel and multi-reel operations

Equipment Specifications

X-ray Source

Type	Integrated, microfocus
Max tube voltage	80kV
Max tube current	700μA
Focal spot size	30μm

Flat Panel Detector

Type	Super definition digital FPD
Effective area	430mm * 430mm
Pixel size	139μm
Resolution	3072 * 3072

Reel/Tray Counting

Max size	17" (430mm)
Max thickness	88mm
Min parts size	01005
Speed	7-10s
Accuracy	01005 ≥ 99.98%, 0201 & above ≥ 99.99%

Performance Metrics

Reel size	Parts size	Quantity	Accuracy	Speed
7" (180mm)	01005	40000	99.98%	9-10s
7" (180mm)	0201	20000	99.99%	8-9s
7" (180mm)	0402	10000	99.99%	7-8s
7" (180mm)	0603	5000	99.99%	7-8s
10" (254mm)	1206	5000	99.99%	7-8s
15" (380mm)	1206	10000	99.99%	7-8s

AI Deep Learning Technology

Our counting software integrates a powerful artificial intelligence deep learning algorithm that automatically identifies components without requiring component-algorithm binding. The system learns from counted component data including image deformation patterns, corner angle measurements, aspect ratio analysis, and component slope gradients.

As counting operations increase, the system becomes progressively more accurate. This enables efficient handling of similar components or larger trays with consistent precision.

Cloud Database Integration

Every Wellman X-ray counter connects to our cloud database, automatically uploading operational data and images while downloading the latest algorithm updates. Our engineering team continuously refines algorithms based on aggregated machine data, regularly pushing enhancements to all connected systems.

This cloud-based approach ensures continuous improvement in counting accuracy and component type coverage. When encountering new components, the system can immediately access relevant data from our global database for optimal efficiency and precision.

Sample Images

Tags:

Accurate SMD X-ray component Counter uses X-ray imaging technology to count the number of components on reels, trays, or in bulk packaging
