XRay Inspection Machine 5inch HD FPD BGA Void Analysis for SMT

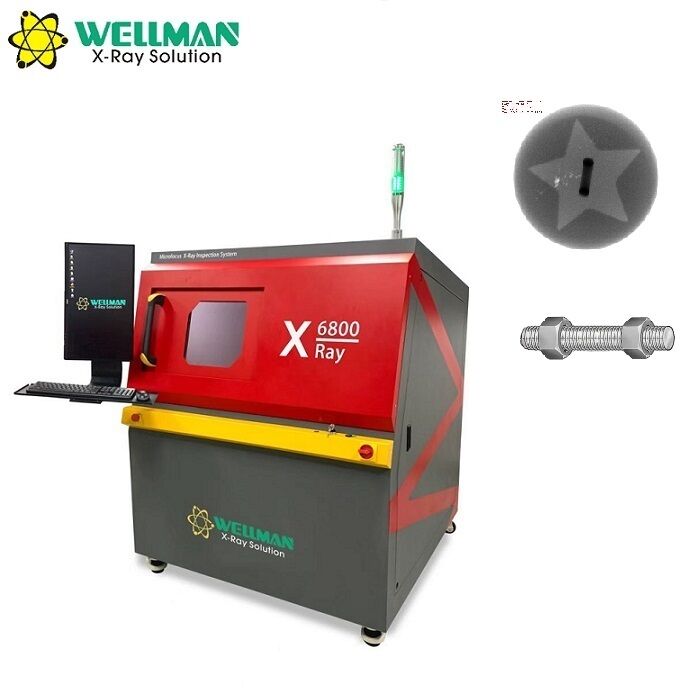

The Wellman Automatic X-Ray Inspection System X6800 delivers advanced non-destructive testing capabilities for SMT manufacturing and electronic component analysis.

• Closed-type X-ray tube with over 10,000 hours service life and maintenance-free performance
• 5-inch HD digital flat panel detector (FPD) supports 60° tilting for optimal viewing angles
• Customizable inspection procedures enable automated batch inspection
• User-friendly operation requiring only 2 hours of training
• Auto-navigation window for precise table positioning
• 530*530mm table with 10KG load-bearing capacity
• 5-axis linkage system with adjustable speed control

• Electromagnetic safety switch automatically locks when X-ray is in operation
• Emergency stop button near operation position
• Tube protection feature prohibits exiting software without closing X-ray tube
• Transparent lead glass observation window shields radiation while enabling internal viewing
• Window and back door safety interlock system
• Radiation leakage: ≤1μSv/h (meets international standards)

• Product list for saving and recalling inspection parameters
• Inspection results display (voids rate, distance, area, etc.)
• Adjustable axis movement speeds (slow/normal/fast)
• Adjustable image brightness, contrast and gain
• Real-time motion axis coordinate display
• Navigation window for precise table positioning
• Mouse/keyboard controlled X-ray tube operation

• Automatic calculation of solder ball voids with NG/OK indication
• Manual void addition through polygon/freehand drawing
• Adjustable grayscale threshold, pixel, contrast, and size filtering
• Saving parameters for consistent product inspection

• Distance measurement between points
• Perimeter measurement for square components
• Radius measurement for circular components
• Angle measurement between points
• Distance rate calculation for through-hole soldering

• Automatic feature recognition for distinctive inspection points
• Manual inspection point setting
• Array inspection for regular patterns
