PCB X Ray Machine Providing Large Table Size and Load Capacity Suitable

Brand Name:	WELLMAN
Model Number:	X6800
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE ，FDA

Type:

Closed,microfocus

Effective Area:

130mm*130mm

Pixel Size:

Resolution:

1536*1536

Dimensions:

1360mm (L) * 1365mm (W) * 1730mm (H）

Highlight:

PCB X Ray machine with large table

PCB X Ray machine high load capacity

PCB X Ray machine for inspection

Product Description

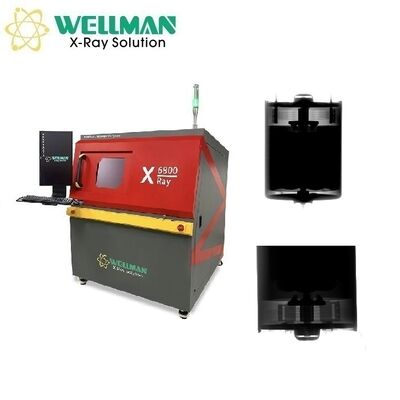

Microfocus X-Ray Inspection System X6800

Advanced PCB X-Ray machine featuring large table size and high load capacity for comprehensive electronic component inspection.

Working Principle

Key Advantages

Closed type X-ray tube with over 10,000 hours lifetime, maintenance-free operation
New generation 5" HD digital flat panel detector (FPD) for superior image quality
FPD tilts 60° without sacrificing magnification capabilities
Automatic navigation window - table moves to clicked position for efficient inspection
530×530mm table with 10KG load capacity for handling various PCB sizes
Speed adjustable 5-axis linkage system for precise positioning
Programmable inspection procedures for automated high-volume inspection
User-friendly operation with comprehensive training completed in just 2 hours

Hardware Specifications

X-ray Source
Type	Closed, microfocus
Maximum Tube Voltage	90kV
Maximum Tube Current	200μA
Focal Spot Size	5μm
Function	Auto preheat

Flat Panel Detector
Effective Area	130mm × 130mm
Pixel Size	85μm
Resolution	1536 × 1536
Frame Rate	20fps
Tiltable Angle	60°

Inspection Table
Size	530mm × 530mm
Detectable Area	500mm × 500mm
Maximum Load	10kg

Equipment Specifications
Magnification	Geometry 200X \| System 1500X
Inspection Speed	Maximum 3.0s/point
Dimensions	1360mm (L) × 1365mm (W) × 1730mm (H)
Weight	1200kg
Power Supply	AC110-220V 50/60HZ
Maximum Power	1500W
Industrial PC	I5 CPU, 8G RAM, 500GB SSD
Display	24" HDMI LCD

Safety Features

Radiation leakage: No leakage, meets international standard ≤1μSv/h
Transparent lead glass observation window for safe internal status monitoring
Window and back door safety interlock - X-ray tube powers off immediately when opened
Electromagnetic safety switch locks when X-ray is active, preventing window access
Emergency stop button located near operation position for immediate power cutoff
Tube protection prevents software exit without proper X-ray tube closure

Software Capabilities

Complete operation via keyboard and mouse interface

Function Module	Operation
X-ray Tube Control	Mouse-click activation, real-time voltage/current display, adjustable via slider or direct input
Status Bar	Visual indication of interlock status, pre-heat status, and X-ray status with red/green flashing
Image Effect Adjustment	Adjustable brightness, contrast and gain for optimal image quality
Product List	Save and recall inspection parameters for improved efficiency with repeat products
Navigation Window	Click-to-move functionality - table automatically positions to clicked location
Motion Axis Status	Real-time coordinate display for precise positioning
Inspection Results	Organized display of measurement results including voids rate, distance, area
Speed Control	Adjustable movement speed for each axis (slow, normal, fast)
Voids Rate Measurement	Automatic calculation of solder ball voids, area, circumference with NG/OK indication
Additional Measurements	Distance, distance rate, angle, radius, perimeter measurements for comprehensive analysis
