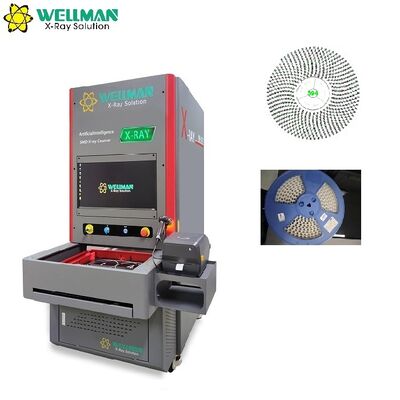

X‑Ray Component Counter Cloud Database Support For SMT Material Inventory

Brand Name:	WELLMAN
Model Number:	XC01
MOQ:	1
Payment Terms:	T/T
Supply Ability:	Worldwide supply

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO9001,FDA

X-ray Tube Voltage:

80KV

Type:

Closed,microfocus

Max Tube Voltage:

80kv

Effective Area:

430mm*430mm

Pixel Size:

139μm

Resolution:

3072*3072

Packaging Details:

Wooden case

Supply Ability:

Worldwide supply

Highlight:

X-Ray component counter with cloud database

SMT material inventory X-Ray counter

X-Ray counter for SMT inventory

Product Description

X-Ray Component Counter with Cloud Database Support for SMT Material Inventory

Advanced X-ray SMD parts counting system with full MES, ERP, and WMS compatibility for streamlined inventory management.

Key Advantages

Work order number management with counting record inquiry and statistical analysis
80kV sealed X-ray tube for extended service life and maintenance-free performance
17-inch super-high-definition digital flat panel detector (FPD)
Ultra-fast counting: measures four 7-inch reels or one 15-inch reel within 10 seconds
Accommodates maximum 17" (430mm) reel or tray with moisture barrier bag
Permanently updated AI deep learning algorithm with free updates
Seamless integration with MES, ERP, WMS and other management systems
Simultaneous barcode scanning and counting with automatic label printing
Automatic mode detection - no manual switching between single/multi reel modes

Equipment Specifications

X-ray Source
Type	Integrated, microfocus
Max tube voltage	80kV
Max tube current	700μA
Focal spot size	30μm
Flat Panel Detector
Type	Super definition digital FPD
Effective area	430mm * 430mm
Pixel size	139μm
Resolution	3072 * 3072
Reel/Tray Counting
Max size	17" (430mm)
Max thickness	88mm
Min parts size	01005
Speed	7-10s
Accuracy	01005 ≥ 99.98%, 0201 & above ≥ 99.99%

Performance Metrics

Reel size	Parts size	Quantity	Accuracy	Speed
7" (180mm)	01005	40000	99.98%	9-10s
7" (180mm)	0201	20000	99.99%	8-9s
7" (180mm)	0402	10000	99.99%	7-8s
7" (180mm)	0603	5000	99.99%	7-8s
10" (254mm)	1206	5000	99.99%	7-8s
15" (380mm)	1206	10000	99.99%	7-8s

AI Deep Learning Technology

Our counting software integrates a powerful artificial intelligence deep learning algorithm that automatically identifies components without requiring component-algorithm binding. The system learns from counted component data including component slope gradients, aspect ratio analysis, corner angle measurements, and image deformation patterns.

As counting operations increase, the system becomes progressively more accurate. This enables efficient handling of similar components or larger trays with consistent precision.

Cloud Database Integration

Each Wellman X-ray counter can link to the cloud database. It automatically uploads operational data and captured images, and downloads the newest algorithm updates. Our engineering team continuously optimizes algorithms using aggregated field data collected from multiple units, and rolls out improved versions to all connected devices on a regular basis.

This cloud-based approach ensures continuous improvement in counting accuracy and component type coverage. When encountering new components, the system can immediately access relevant data from our global database for optimal efficiency and precision.
