| Brand Name: | WELLMAN |
| Model Number: | X6000 |
| MOQ: | 1 |
| Payment Terms: | T/T |

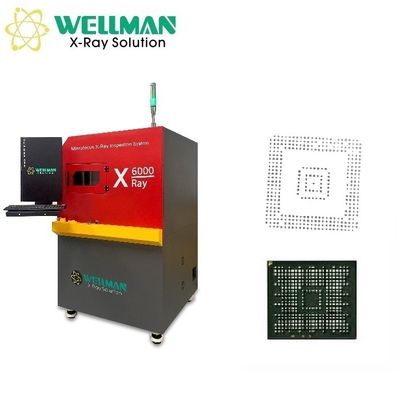

Advanced X-ray inspection system designed for high-speed electronic component analysis with intelligent image processing capabilities.
| X-ray Source | |
|---|---|
| Type | Closed, microfocus |
| Max tube voltage | 90kV |
| Max tube current | 200μA |
| Focal spot size | 5μm |
| Function | Auto preheat |
| Flat Panel Detector | |
|---|---|
| Effective area | 130mm×130mm |
| Pixel size | 85μm |
| Resolution | 1536×1536 |
| Frame rate | 20fps |
| Table Specifications | |
|---|---|
| Size | 420mm×420mm |
| Detectable area | 400mm×400mm |
| Max load | 15kg |
| Equipment Specifications | |
|---|---|
| Magnification Geometry | 150X |
| System Magnification | 1500X |
| Inspection speed | Max 3.0s/point |
| Dimensions | 1100mm (L)×1000mm (W)×1600mm(H) |
| Weight | 1000kg |
| Power supply | AC110-220V 50/60HZ |
| Max power | 1300W |
| Industrial PC | Intel I5 CPU, 8G RAM, 240GB SSD |
| Displayer | 24"HDMI LCD |
Keyboard and mouse can complete all operations with intuitive controls.
Mouse-click operation to turn X-ray on/off with real-time voltage and current display. Adjust via buttons, sliders, or direct input.
Visual status bar indicates interlock status, pre-heat status, and X-ray status with alternating red and green indicators.
Freely adjust brightness, contrast and gain for optimal image quality and inspection results.
Save inspection parameters (Z-axis position, brightness, contrast, gain) for efficient repeat inspections.
Camera captures table image; click anywhere to automatically move table to selected position.
Real-time coordinate display with adjustable axis movement speeds (slow, normal, fast).
Automatic calculation of voids rate, solder ball area, circumference, and defect identification with NG/OK color coding.
Comprehensive tools including distance, distance rate, angle, perimeter, and radius measurements for various component types.
Manual point setting, array-based inspection, and automatic feature recognition for batch processing and image saving.
