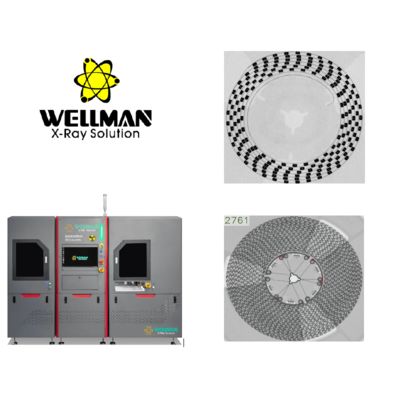

| Brand Name: | Wellman |
| Model Number: | IL-1000 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| X-ray Source | |
|---|---|
| Type | Microfocus |
| Max tube voltage | 80kV |
| Max tube current | 700μA |
| Focal spot size | 30μm |
| Flat Panel Detector | |
| Type | Super definition digital FPD |
| Effective area | 430mm*430mm |
| Pixel size | 139μm |
| Resolution | 3072*3072 |
| Reel/Tray Counting | |
| Max size | Auto mode 15" (380mm), manual mode 17" (430mm) |
| Max thickness | Auto mode 50mm, Manual mode 80mm |
| Min parts size | 01005 |
| Speed | 12-15s |
| Accuracy | 01005 ≥ 99.98%, 0201 & above ≥ 99.99% |
| Media type | Reel materials, tray materials with moisture-proof bag |
| Equipment | |
| Dimensions | 2700mm (L) * 1400mm (W) * 1900mm (H) |
| Weight | 3000kg |
| Power supply | AC110-220V 50/60HZ |
| Max power | 4800W |
| Industrial PC | I7 CPU, 16G RAM, 256G SSD+4T HDD |
| Displayer | 24" HDMI LCD |
| Management system connection | MES, ERP, etc. |
| Workflow | |
| Loading | After the reel vehicle is pushed in, the manipulator automatically loads, supporting 7 to 15 inches of reel |
| Max loading quantity | 200 reels (7" with 8mm thickness) |
| Barcode scanning | Can scan barcode, QR code |
| Reel transfer | Automatic belt transfer |
| Labelling | Automatically print and paste labels after counting, and upload data automatically |
| Unloading | The manipulator automatically put into the reel vehicle |
| Safety | |
| Radiation leakage | No leakage, international standard: ≤1μSv/h |
| Back door safety interlock | Once users open the back door, X-ray tube will power off immediately |
| Emergency stop | In front of the operation position, press to power off |
| Reel size | Parts size | Quantity | Accuracy | Speed |
|---|---|---|---|---|
| 7" (180mm) | 01005 | 10000 | 99.98% | 12-13s |
| 7" (180mm) | 0201 | 10000 | 99.99% | 11-12s |
| 7" (180mm) | 0402 | 10000 | 99.99% | 11-12s |
| 7" (180mm) | 0603 | 5000 | 99.99% | 10-11s |
| 10" (254mm) | 1206 | 5000 | 99.99% | 10-11s |
| 15" (380mm) | 1206 | 10000 | 99.99% | 11-12s |
