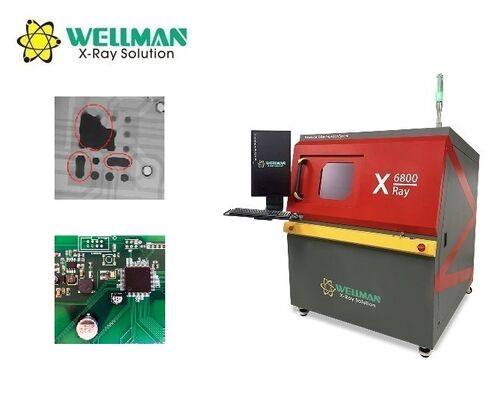

Safety Features

Feature	Description
Radiation leakage	No leakage, international standard: ≤1μSv/h
Lead glass observation window	Transparent lead glass window shields radiation to observe the inner status
Window and back door safety interlock	Once users open the window or back door, X-ray tube will power off immediately. When the window or back door is open, users can't turn on the X-ray
Electromagnetic safety switch	Lock once the X-ray is on, users can't open the observation window
Emergency stop	Next to the operation position, press to power off
Tube protection	User can't leave the software if you don't close the X-ray tube

Software Functions

Keyboard and mouse can finish all operations

Function Module	Description
X-ray tube control	Using mouse to click the X button can turn on or off the X-ray. The real-time tube voltage and current value will display beside, users can click up and down button, or drag the slider, or type to adjust
Status bar	Indicates the interlock status, pre-heat status, and X-ray status by flashing alternately red and green
Image effect adjustment	The brightness, contrast and gain of the image can be adjusted freely to achieve a satisfactory result
Product list	Users can save the inspection parameters such as Z-axis position, brightness, contrast and gain, and can directly call the parameters when inspecting the same product, to improve the inspection efficiency
Navigation window	After the camera takes a photo of the table, click anywhere in the photo, the table will move to the place you click and display on the screen
Motion axis status	Display real-time coordinates
Inspection result	The measurement results (voids rate, distance, area, etc., set by users) display in order
Speed control	The movement speed of each axis can be adjusted to slow, normal and fast

Voids Rate Measurement

Function	Description
Automatic calculation	Click on two points to determine a rectangle. The software automatically finds and measures the edge of the solder ball in the rectangle, the pad and the internal voids, and can get the data of the voids rate, the area of the solder ball, the circumference, the biggest void's rate, the length and the width, and indicates NG or OK by red and green
Parameters adjustment	Users can adjust the grayscale threshold, pixel, contrast, size filtering and other parameters to get accurate results of automatic calculation
Add voids manually	Users can draw a polygon or a free figure and calculate it as a void into the void rate
Save parameters	Users can save parameters such as grayscale threshold, pixel, contrast, size filtering and other parameters, and can directly call the parameters when detecting the same product, to improve the detection efficiency

Other Measurement Functions

Function	Description
Distance	Click the A and B points to set as the baseline, then click the C point to measure the vertical distance from the C point to the baseline
Distance Rate	Mostly used to measure the soldering rate of the through-hole. Set one more point "D" than the distance. Divide the vertical distance from the D point to baseline by the vertical distance of the C point, to obtain the percentage ratio of the vertical distance of D to C
Angle	Click the A and B points to set as the baseline, then click the C point to measure the angle between the BA and BC rays
Radius	Mostly used to measure round components such as solder balls. Click three points to determine a circle and measure the circumference, area and radius
Perimeter	Mostly used to measure square components, click two points to determine a square, measure the length, width and area

Automatic Inspection

Mode	Description
Manual Setting	Users can set any positions on the table as inspection points, the software will automatically inspect and save the picture
Array	For the regular inspection points, users only need to set two of the inspection points and the number of rows and columns, the software will automatically inspect each point and save pictures
Automatic Identification	For inspection points with obvious features, the software automatically identifies the positions, takes measurements, and saves the image
