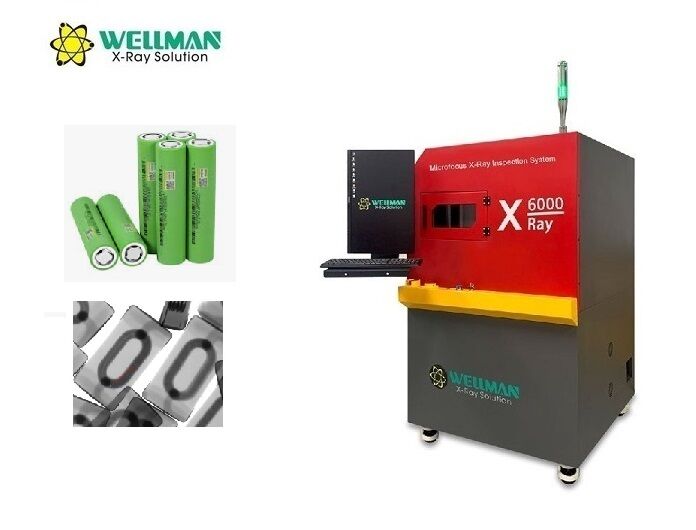

Safety Features

Feature	Description
Emergency Stop	Located next to operation position for immediate power cutoff
Tube Protection	Software prevents leaving without closing X-ray tube
Radiation Leakage	No leakage (international standard: ≤1μSv/h)
Lead Glass Observation Window	Transparent lead glass window shields radiation to observe internal status
Window and Back Door Safety Interlock	X-ray tube powers off immediately when window or door opens

Software Functions

Function	Description
Operation	Keyboard and mouse can finish all operations
X-ray tube control	Using mouse to click the X button can turn on or off the X-ray. The real-time tube voltage and current value will display beside, users can click up and down button, or drag the slider, or type to adjust.
Status bar	Indicates the interlock status, pre-heat status, and X-ray status by flashing alternately red and green.
Image effect adjustment	The brightness, contrast and gain of the image can be adjusted freely to achieve a satisfactory result.
Product list	Users can save the inspection parameters such as Z-axis position, brightness, contrast and gain, and can directly call the parameters when inspecting the same product, to improve the inspection efficiency.
Navigation window	After the camera takes a photo of the table, click anywhere in the photo, the table will move to the place you click and display on the screen.
Motion axis status	Display real-time coordinates.
Inspection result	The measurement results (voids rate, distance, area, etc., set by users) display in order.
Speed control	The movement speed of each axis can be adjusted to slow, normal and fast.

Voids Rate Measurement

Automatic Calculation: Click on two points to determine a rectangle
Parameters Adjustment: Adjust grayscale threshold, pixel and other parameters for accurate results
Add Voids Manually: Draw polygon or free figure and calculate as void into void rate
Save Parameters: Save parameters such as grayscale threshold for direct recall

Other Measurement Functions

Distance: Click A and B points as baseline, then click C point to measure vertical distance
Distance Rate: Mostly used to measure soldering rate of through-hole
Angle: Click A and B points as baseline, then click C point to measure angle between BA and BC rays
Radius: Click three points to determine circle and measure circumference, area and radius
Perimeter: Click two points to determine square, measure length, width and area

Automatic Inspection

Manual Setting: Set any positions on table as inspection points, software automatically inspects and saves picture
Array: Set two inspection points and number of rows and columns
Automatic Identification: For inspection points with obvious features, software automatically identifies positions, takes measurements, and saves image
