| Brand Name: | WELLMAN |

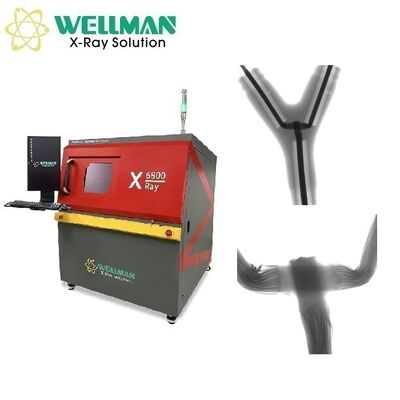

| Model Number: | X6800 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| X-ray Source | |
|---|---|
| Type | Closed, microfocus |
| Maximum Tube Voltage | 90kV |
| Maximum Tube Current | 200μA |
| Focal Spot Size | 5μm |
| Function | Auto preheat |
| Flat Panel Detector | |
| Effective Area | 130mm×130mm |
| Pixel Size | 85μm |
| Resolution | 1536×1536 |
| Frame Rate | 20fps |
| Tiltable Angle | 60° |
| Table | |
| Size | 530mm×530mm |
| Detectable Area | 500mm×500mm |
| Maximum Load | 10kg |
| Equipment | |
| Magnification | Geometry 200X | System 1500X |
| Inspection Speed | Maximum 3.0s/point |
| Dimensions | 1360mm (L)×1365mm (W)×1730mm (H) |
| Weight | 1200kg |
| Power Supply | AC110-220V 50/60HZ |
| Maximum Power | 1500W |
| Industrial PC | I5 CPU, 8G RAM, 500GB SSD |
| Display | 24" HDMI LCD |
| Radiation Leakage | No leakage, international standard: ≤1μSv/h |
| Lead Glass Observation Window | Transparent lead glass window shields radiation for safe internal observation |
| Window and Back Door Safety Interlock | X-ray tube powers off immediately when window or back door opens; prevents X-ray activation when open |
| Electromagnetic Safety Switch | Locks observation window when X-ray is active |
| Emergency Stop | Located next to operation position for immediate power cutoff |
| Tube Protection | Software prevents user exit without proper X-ray tube closure |
| Function Module | Operation |
|---|---|
| Complete Keyboard/Mouse Control | All operations can be performed using keyboard and mouse |
| X-ray Tube Control | Mouse-click activation with real-time voltage/current display and adjustable settings via buttons, sliders, or direct input |
| Status Bar | Visual indication of interlock status, pre-heat status, and X-ray status with alternating red/green flashing |
| Image Effect Adjustment | Free adjustment of brightness, contrast and gain for optimal image quality |
| Product List | Save and recall inspection parameters (Z-axis position, brightness, contrast, gain) for improved efficiency with repeat products |
| Navigation Window | Camera captures table image; click anywhere to move table to selected position |
| Motion Axis Status | Real-time coordinate display |
| Inspection Results | Organized display of measurement results (voids rate, distance, area, etc.) |
| Speed Control | Adjustable movement speed for each axis (slow, normal, fast) |
| Voids Rate Measurement | Automatic calculation with rectangle selection; measures solder ball edges, pads, internal voids; provides voids rate, area, circumference, dimensions; NG/OK indication with red/green |
| Parameters Adjustment | Adjustable grayscale threshold, pixel, contrast, size filtering for accurate results |
| Manual Void Addition | Draw polygons or free figures to calculate as voids in rate calculation |
| Parameter Saving | Save measurement parameters for efficient repeat product inspection |
| Additional Measurement Functions | Distance measurement, distance rate calculation, angle measurement, radius measurement, perimeter measurement with comprehensive geometric analysis |
