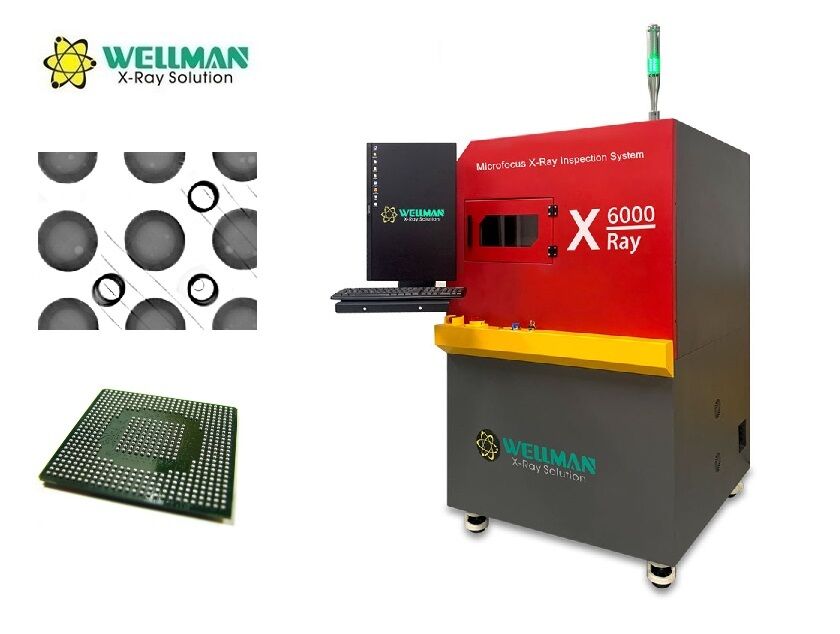

| Brand Name: | WELLMAN |
| Model Number: | X-6000 |
| Payment Terms: | T/T |
| Type | Closed, microfocus |
|---|---|
| Max Tube Voltage | 90kV (optional) |
| Max Tube Current | 200μA |
| Focal Spot Size | 5μm (optional) |
| Function | Auto preheat |
| Effective Area | 130mm×130mm |
|---|---|
| Pixel Size | 85μm |
| Resolution | 1536×1536 |
| Frame Rate | 20fps |
| Max Load | 15kg |
|---|---|
| Size | 420mm×420mm |
| Detectable Area | 400mm×400mm |
| Magnification | Geometry 150X | System 1500X |
|---|---|
| Inspection Speed | Max 3.0s/point |
| Dimensions | 1100mm (L) × 1000mm (W) × 1600mm (H) |
| Weight | 1000kg |
| Power Supply | AC110-220V 50/60HZ |
| Max Power | 1300W |
| Industrial PC | Intel I5 CPU, 8G RAM, 240GB SSD |
| Displayer | 24" HDMI LCD |
| Feature | Description |
|---|---|
| Emergency Stop | Located next to operation position for immediate power cutoff |
| Tube Protection | Software prevents leaving without closing X-ray tube |
| Radiation Leakage | No leakage (international standard: ≤1μSv/h) |
| Lead Glass Observation Window | Transparent lead glass window shields radiation to observe internal status |
| Window and Back Door Safety Interlock | X-ray tube powers off immediately when window or door opens |
| Function | Description |
|---|---|
| Operation | Keyboard and mouse can finish all operations |
| X-ray tube control | Using mouse to click the X button can turn on or off the X-ray |
| Status bar | Indicates the interlock status, pre-heat status, and X-ray status by flashing alternately red and green |
| Image effect adjustment | The brightness, contrast and gain of the image can be adjusted freely to achieve a satisfactory result |
| Product list | Users can save the inspection parameters, and can directly call the parameters to improve the inspection efficiency |
| Navigation window | The table will move to the place you click and display on the screen |
| Motion axis status | Display real-time coordinates |
| Inspection result | The measurement results (voids rate, distance, area, etc., set by users) display in order |
| Speed control | The movement speed of each axis can be adjusted to slow, normal and fast |
| Function | Description |
|---|---|
| Distance | Click the A and B points to set as the baseline, then click the C point to measure the vertical distance from the C point to the baseline |
| Distance rate | Set one more point "D" than the distance. Divide the vertical distance from the D point to baseline by the vertical distance of the C point, to obtain the percentage ratio of the vertical distance of D to C |
| Angle | Click the A and B points to set as the baseline, then click the C point to measure the angle between the BA and BC rays |
| Radius | Click three points to determine a circle and measure the circumference, area and radius |
| Perimeter | It is mostly used to measure square components, click two points to determine a square, measure the length, width and area |
| Method | Description |
|---|---|
| Manual setting | Users can set any positions on the table as inspection points, the software will automatically inspect and save the picture |
| Array | For the regular inspection points, users only need to set two of the inspection points and the number of rows and columns, the software will automatically inspect each point and save pictures |
| Automatic identification | For inspection points with obvious features, the software automatically identifies the positions, takes measurements, and saves the image |
